Auto Air Permeability Tester With 10Pa - 2500Pa Pressure And Measure Accuracy <�±2%

Name: Auto Air Permeability Tester With 10Pa 2500Pa Pressure And Measure Accuracy lt2
Brand: TESTEX
Price: 1 USD

China Auto Air Permeability Tester With 10Pa - 2500Pa Pressure And Measure Accuracy <�±2% wholesale

Brand Name : TESTEX

Model Number : TF164E

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,T/T,Western Union,MoneyGram, In Cash

Supply Ability : 300 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Standard exporting wooden case

Optional test heads : 5 cm2, 25 cm2, 38 cm2, 50 cm2, 100 cm2

Max thickness of specimen : 0 ~ 10 mm

units can be shift : mm/s, cfm, cm3/cm2/s, l/m2/s, l/dm2/min, m3/m2/min, m3/m2/h and dm3/s

Standards : ASTM D737, ISO 9237

Dimensions : 1000 x 450 x 1140 mm (L x W x H)

Warranty : 1 year

Port : SHENZHEN

Contact Now

Auto Air Permeability Tester With 10Pa - 2500Pa Pressure And Measure Accuracy <±2%

Application

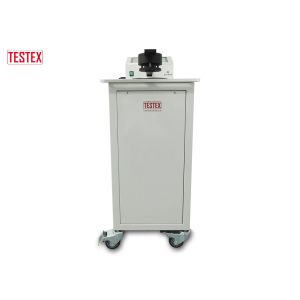

Auto Air Permeability Tester, is used to determine the air permeability of fabric totally automatically. With its wide measuring range, it is suitable for all kinds of knitted, woven, non-woven, coated fabrics, paper, film, leather, etc.

A test sample is placed on the clamping head; parameters of test are set on the Android based software on the Samsung pad connected with machine. By pressing down the upper clamping arm the system automatically starts, the system automatically adjusts machine and shift nozzles if required; after a few seconds the test results are then displayed and the excel report is generated, and the test results are displayed on the Samsung pad.

Specifications

units can be shift mm/s, cfm, cm3/cm2/s, l/m2/s, l/dm2/min, m3/m2/min, m3/m2/h and dm3/s
Test Heads 20 cm²
Test pressure 10 ~ 2,500 Pa
Max thickness of specimen 0 ~ 10 mm
Measuring accuracy <+/-2%

Optional test heads 5 cm², 25 cm², 38 cm², 50 cm², 100 cm²

Standards	ASTM D737, ISO 9237
Power	220 / 110 V 50 / 60 Hz
Weight	121 kg
Dimensions	1000 x 450 x 1140 mm (L x W x H)
